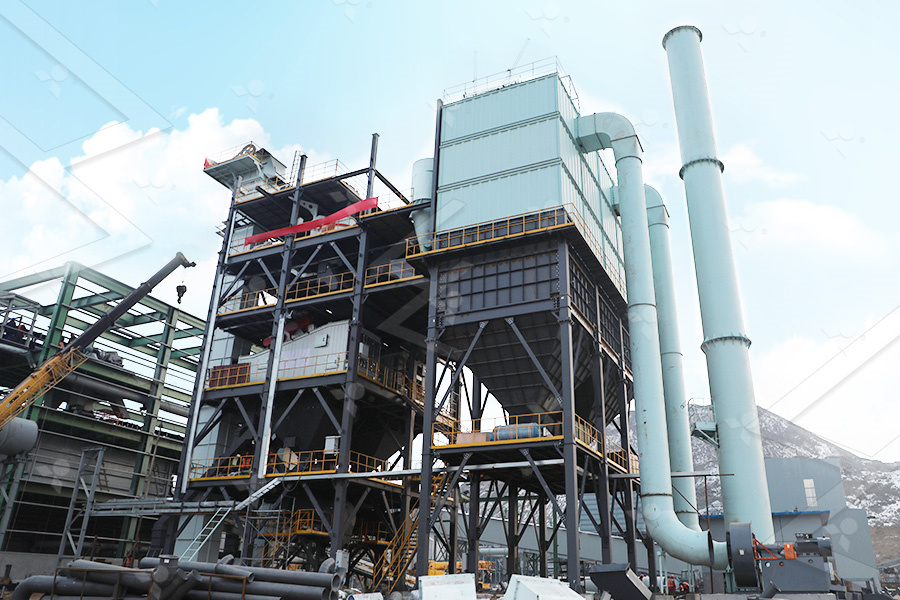

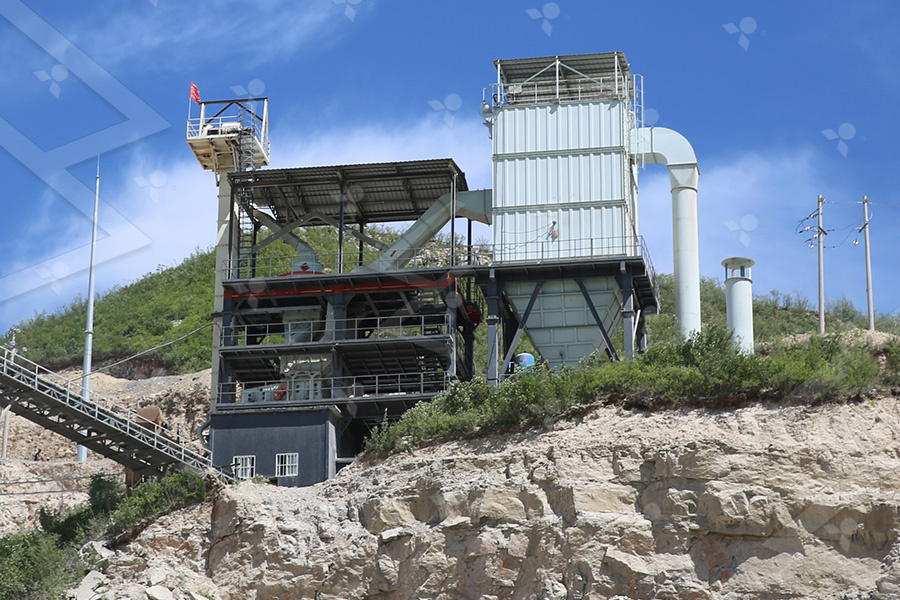

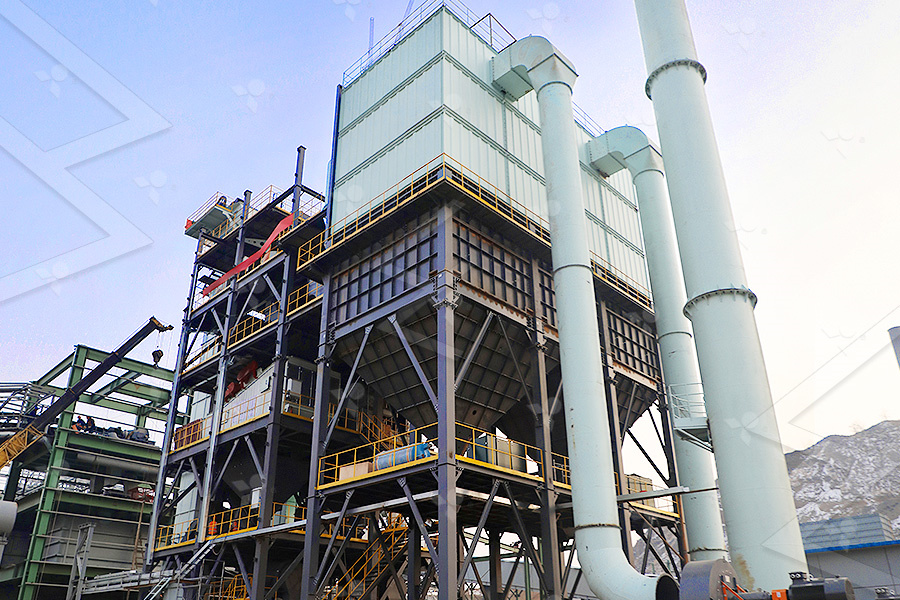

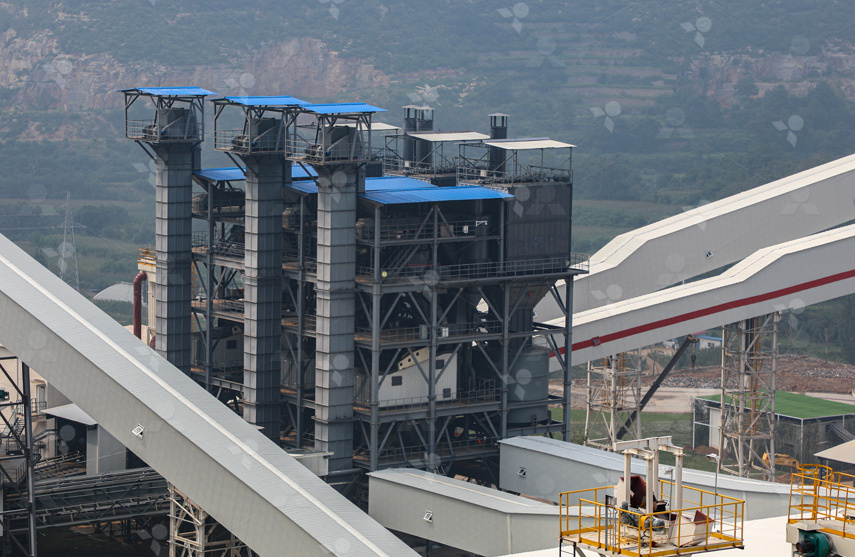

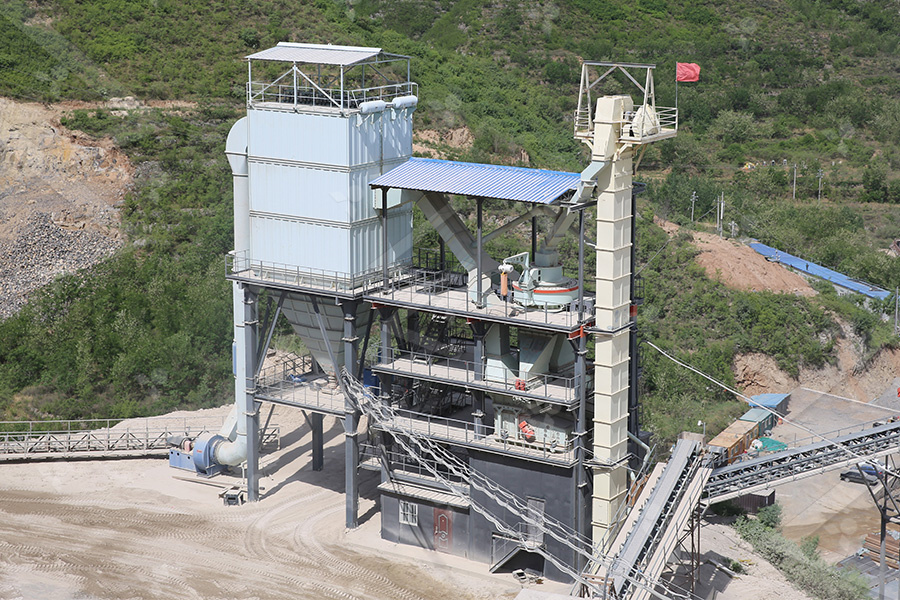

VUS aggregate optimization system
The VUS sand and gravel simultaneous output system is designed with high quality, environmental protection and intensiveness as its design concept. It adopts a highly intensive tower-style fully enclosed layout. It is a dry sand making system that integrates sand shaping, particle shape optimization, stone powder control, grading adjustment, moisture content control and environmental protection treatment. It has the characteristics of high degree of automation, convenient operation, integrated modularization, compact equipment, reasonable process flow, smooth production, complete product spectrum and wide coverage. It can produce coarse and fine aggregates and high value-added stone powder for construction that meet national standards. It is an ideal choice for aggregate manufacturers.
Working Principle

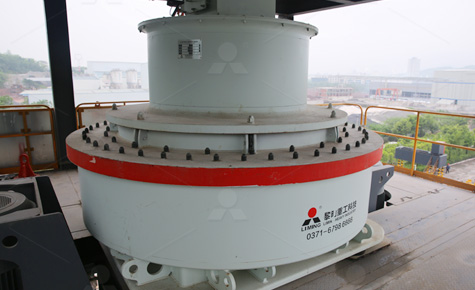

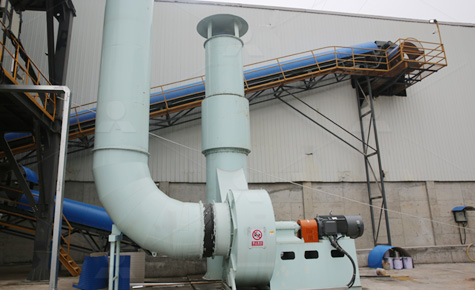

VUS aggregate optimization system adopts dry process, which mainly consists of feeding, sand making and screening, dust removal, stone powder storage, electrical control, etc. five parts. Raw materials are fed into VUS vertical shaft impact crusher by lifting, after high frequency stone crushing and grinding, they enter the air separation room, and the content of stone powder is adjusted by changing the size of powder box’s air inlet and the system’s air volume. After that, the materials are sent to the separation screen and sorted into stone, stone powder and sand. Stone powder is collected as finished stone powder through dust removal and dust collection system. Quasi-finished sand will be finished sand after mixing through humidifying mixer. By use of VUS aggregate optimization system, coarse and fine aggregates with reasonable gradation, round shape and controllable powder content can be produced, as well as dry and clean stone powder which can be reused.
Product Details
Specifications - Technical Data
| Model | VUS301 | VUS501 | ||
| Sand Making | Sand thaping | Sand Making | Sand thaping | |
| Input Size (mm) | 0-40 | 0-40 | ||
| Input Amount (t/h) | 100 | 300 | 150 | 550 |
| Sand Output (t/h) | 70-90 | 0-240 | 110-135 | 0-440 |
| Stone Powder Content (adjustable) (mm) | 3-15% | 3-15% | ||
| Power (kW) | 622 | 966 | ||
| Dimension L*W*H (m) | 21×8×27.5 | 21×10×30.2 | ||
