1. Introduction
In the construction and infrastructure development sectors, the demand for high-quality manufactured sand and aggregates is continuously growing. The Vertical Shaft Impact (VSI) Sand Making Machine has emerged as a pivotal technology in modern crushing and shaping processes. As a leading manufacturer in the mining machinery industry, Liming Heavy Industry (Liming) provides advanced VSI crusher solutions that efficiently produce precisely shaped sand and aggregates, meeting the stringent requirements of contemporary construction projects.

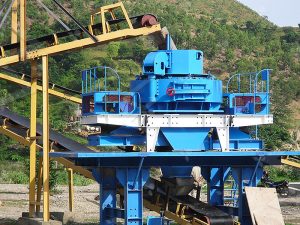

2. Overview of VSI Sand Making Machine
The VSI Sand Making Machine is a rock-on-rock impact crusher that utilizes a high-speed rotor and anvils for impact crushing. It is specifically designed for the production of high-quality cubical aggregates and manufactured sand from hard, abrasive rocks. Liming Heavy Industry's VSI crushers are engineered with advanced technology to optimize particle shape, increase production capacity, and reduce operational costs.
3. Working Principle
Liming's VSI crushers operate on the principle of accelerating materials in a rotor and throwing them against a crushing chamber where impact breakage occurs. The process involves:
- Material Feeding: Raw materials enter the crusher through the feed hopper.
- Acceleration: The high-speed rotor accelerates the materials and throws them against the stationary anvils or rock lining in the crushing chamber.
- Rock-on-Rock & Rock-on-Iron Crushing: Materials are broken primarily by impact forces as they collide with the anvils or other particles.
- Shaping and Sizing: Repeated impacts produce well-shaped, cubical end products.
- Gradation Control: The adjustable rotor speed and cascade feed system allow precise control over product gradation.
4. Key Advantages of Liming VSI Sand Making Machines
Liming Heavy Industry's VSI crushers offer several significant benefits for sand and aggregate production:
- Superior Product Shape: Produces highly cubical, well-graded aggregates that meet international standards (such as ASTM C33).
- High Production Efficiency: Advanced rotor design and crushing chamber geometry maximize throughput and reduction ratios.
- Versatility: Capable of processing various raw materials including granite, basalt, limestone, river gravel, and industrial by-products.
- Low Operational Costs: Features like hydraulic lid lifting and rotor access simplify maintenance, reducing downtime.
- Environmental Benefits: Effective dust control systems and low noise operation align with sustainable production practices.
5. Applications in Sand and Aggregate Production
Liming VSI crushers are extensively used in:
- Manufactured Sand (M-Sand) Production: Producing high-quality sand as a sustainable alternative to natural river sand for concrete and mortar.
- High-Quality Aggregate Production: Shaping aggregates for asphalt concrete, road base, and railway ballast.
- Industrial Mineral Processing: Processing abrasive materials for various industrial applications.
- Recycling Operations: Crushing and shaping of construction and demolition waste for reuse as recycled aggregates.
6. Technical Specifications of Liming VSI Crushers
Liming Heavy Industry offers a comprehensive range of VSI crusher models with varying capacities and configurations:
| Model | Max Feed Size (mm) | Capacity (t/h) | Motor Power (kW) | Rotor Speed (r/min) | Weight (t) |
|---|---|---|---|---|---|
| VSI6X1263 | 50 | 315-650 | 315×2 | 1000-1300 | 26.5 |
| VSI5X9532 | 45 | 180-360 | 220×2 | 1300-1500 | 18.6 |
| VSI5X1145 | 50 | 320-560 | 400×2 | 1100-1310 | 25.8 |
| VSI1140 | 45 | 250-380 | 250×2 | 1300-1500 | 20.5 |
7. Innovative Features of Liming VSI Technology
Liming Heavy Industry incorporates several patented technologies in their VSI crushers:
- Four-Port Rotor Design: Enhances material throughput and improves crushing efficiency by approximately 20% compared to traditional designs.
- Hydraulic Lid Opening System: Allows quick and safe access to the crushing chamber for maintenance and wear part replacement.
- Automatic Control System: Monitors operation parameters in real-time, optimizing performance and preventing equipment damage.
- Modular Wear Parts: Interchangeable wear components reduce inventory costs and extend service life.
8. Case Study: Successful Application
A large aggregate producer in Asia replaced their traditional cone crushers with Liming's VSI6X1263 sand making machines for manufactured sand production. The results included:
- Production capacity increased by approximately 35%
- Product shape improved significantly, with cubicity index exceeding 95%
- Fines generation reduced by 15%, optimizing yield
- Overall operating costs decreased by approximately 20% due to lower wear rates and energy consumption
9. Market Trends and Future Outlook
The global demand for high-quality aggregates is projected to grow substantially, driven by infrastructure development and urbanization. Liming Heavy Industry continues to innovate in VSI technology with focus areas including:
- Integration of IoT and smart monitoring systems for predictive maintenance
- Development of more energy-efficient models to reduce carbon footprint
- Enhanced automation for consistent product quality
- Specialized designs for processing recycled materials
The VSI Sand Making Machine represents a critical technological advancement in aggregate production, offering unmatched capabilities in shaping and grading manufactured sand and aggregates. Liming Heavy Industry's comprehensive range of VSI crushers combines robust construction, innovative features, and operational efficiency to meet the evolving needs of the global construction materials industry. With continuous research and development, Liming is positioned to remain at the forefront of crushing technology, providing sustainable solutions for the world's infrastructure development challenges.
